These Exair NEMA 12 continuous running 550 Btu/hr cabinet cooler systems only require a compressed air connection to work. Full fitting instructions are provided.
All items are manufactured with BSP threads or have a suitable adapter provided.
Cabinet Coolers must be used with clean dry air a Filter Regulator is recommended.
Air Consumption 1133L/m
Cooling Capacity 550Btu/hr
Sound Level 88dBA
All measurements based on 6.9Bar

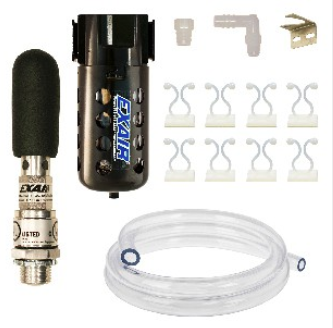

Complete With,
-4030, NEMA 12 Cabinet Cooler, Rated 550Btu/hr
-9003, Filter/Regulator, 40SCFM flow rate, 1/4"BSP
-4904, Cold Air Distribution Kit
